鉑金硫化矽膠軟管FU10係列

東莞市91香蕉小视频矽膠製品有限公司

金硫化矽膠軟管FU10係列

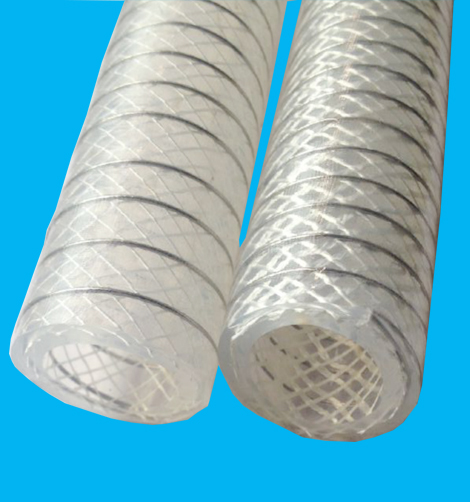

Platinum vulcanization silicone hose FU10

產品應用：

•高級飲料用軟管，特別適用於運送各種軟飲料和酒精飲品，以及其他液體飲料如 啤酒，果汁和飲用水。

•廣泛應用於啤酒廠、葡萄酒廠和飲料廠。適用於吸入和輸送應用。

產品描述：

材質：鉑金矽膠，SS304不鏽鋼絲，高溫聚脂纖維線

MAIN BENEFITS - 顯著特性

鉑金硫化矽膠軟管FU20係列

——工作溫度範圍‘-60ºC / +180ºC (-76ºF / +356ºF)在短時間內可達到  220ºC (392ºF)

——具有很好彎曲性，耐真空性能好，可采用高溫高壓蒸汽消毒SIP清洗和高溫高壓清洗CIP。

——無嗅、無味,完全無毒，不含任何塑化劑和添加劑成分。完全符合食品FDA和生物醫用級USP VI的要求。

——耐大氣侵蝕，耐老化，平滑，布狀表麵。

品質認證：

——鉑金矽膠軟管通過美國FDA 21 CFR 177.2600(食品和藥物管理局)食品級認證。

——鉑金矽膠軟管通過德國BfR零件 XV標準認證和LFBG認證。

——鉑金矽膠軟管符合通過美國醫用USP Class VI級標準認證。

Product application:

-Advanced beverage hoses.Especially suitable for deliverying all kinds of soft drinks and alcoholic beverages,

as well as other liquid beverages such as beer,fruit juices and drinking water.

-Widely used in beer plants, wine plants and beverage plants. Suitable for suction and and delivery.

Product discription:

Materials: Platinum silicone, SS304 stainless steel wire, high temperature Polyester fiber thread

Product characteristics:

-The working temperature range: -60 to +180 degrees Celsius (or -76 to +356 degrees Fahrenheit) and it can reach 220 degrees Celsius (or 392 degree Fahrenheit) in a short period of time

-With a good bend, vacuum resistance,used for high temperature and high pressure steam disinfection SIP cleaning and high temperature and high pressurecan cleaning CIP.

-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully comply with the requirements of food FDA and biological medical grade USP.

-atmospheric corrosion resistance, aging resistance, smooth cloth surface.

Quality certification:

-Platinum silicone hose passes the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.

-Platinum silicone hose passes the German FDA/BFR parts XV standard certification and LFBG and BGVV standard certification.

-Platinum silicone hose in accordance with the United States Class VI USP grade standard certification.
