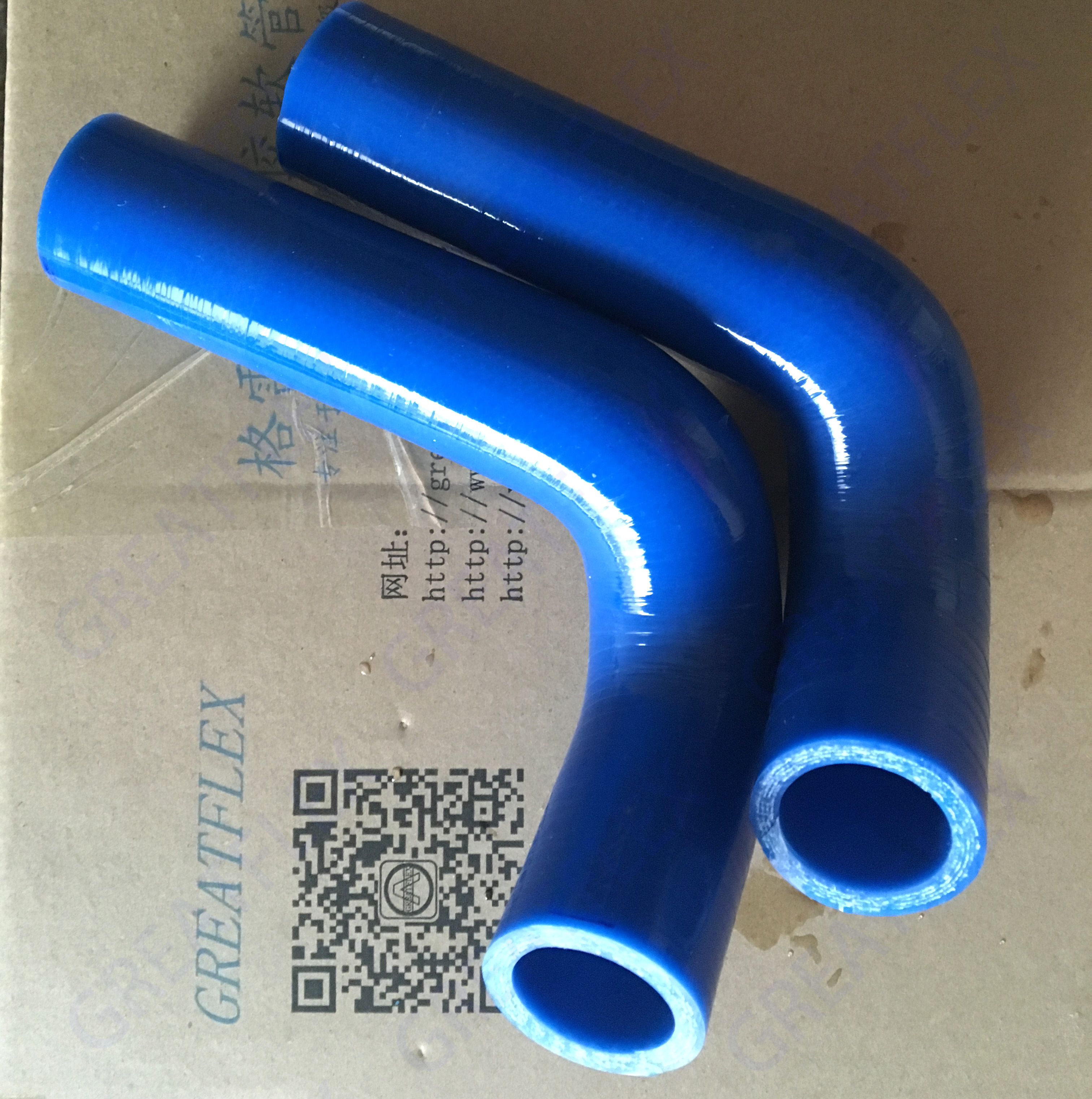

90度彎矽膠軟管EB90

產品應用：

本產品推薦應用於在高溫高壓時，可以過熱空氣和熱水，具有良好的耐溫性和耐腐性。

主要應用於公共汽車，拖車和一些特殊工況下，同時可以應用於汽車發動機。可做為汽車，貨櫃車，公共汽車發動機的冷卻水管

產品特點：

-具有極好的壓縮

-組裝過程中具有良好的彎曲性和柔軟性能。

-內外表麵光滑，可以做藍色，紅色和黑色，同時還可以是可以根據客戶的要求來定做顏色和不同規格的長度。

-具有良好的耐溫性能，工作溫度為-60 ºC (-75 F) to +180ºC (356 F），短時間的工作溫度可以達到 200ºC (392 F)

一般長度為100*100,150*150,200*200MM,如有特殊要求可以根據客戶的要求來定做.

---耐臭氧性,抗UV性能和耐老化性能.

符合標準：

1.產品符合SAE J20R1 Class A的標準

2.矽膠軟管符合歐洲EU 2002/95/ECC 環保RoHS認證標準。

This product is especially recommended for the pressurized air or water conduction

at high temperatures, it can be used in vehicles and in the industrial sector.

For using in cooling and heating systems in buses, coaches, lorries and industrial

vehicles, cooling systems in cogeneration units and marine engines, and transport of

high temperature fluids in general industry.

It is recommended for connections in areas with limited space.

Properties

−Highly resistant to hardening with very good compression characteristics.

−Excellent flexibility during the assembly process.

−Smooth inner and outer appearance, and blue color. Upon request, it can also

be supplied in other colors.

−Operational temperature range from -60 ºC (-75 F) to +180ºC (356 F), it may

reach up to 200ºC (392 F) during short periods of time.

−Manufactured with inner diameters ranging between 6mm and 100mm, usually

at angles of 90º  and standard arm lengths (L1 and L2) of

100x100mm, 150x150mm or 200x200mm, although they can be manufactured

in any diameter, angle or length required.

−Excellent resistance to thermal aging and oxidizing agents (oxygen, ozone, UV).

Regulations

−  Meets or exceeds operatingrequirements of SAE J20 R1Class A.

−  Silicone rubber used is in accordance with EU Directive 2002/95/ECC for Restriction of the use of hazardous substances (RoHS).
