矽膠鋼絲軟管SP70

東莞市91香蕉小视频矽膠製品有限公司

鋼絲矽膠軟管SP70

wire silicone hose SP70

注:1.標準生產長度為6米（特殊可訂做10米）。可以做切短。其它的內徑要求可以根據客戶的要求來訂製。

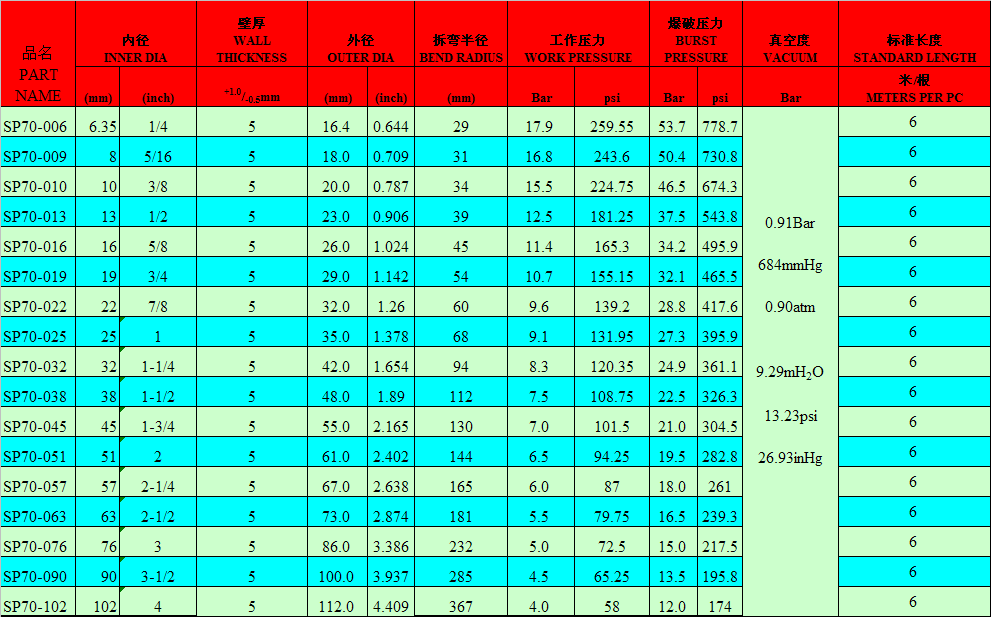

2.在我們在參數表中測試是依照常溫，標準大氣壓狀態。當壓力不變時，溫度每上升幅度100度，壓力會下降百分之15。

REMARKS:

1,Test conditions: tested under normal temperature and pressure state(room temperature is 20 degrees Celsius),

When the pressure is constant, the temperature rise by 100 degrees, the pressure will drop by 15%.

2, Standard length is 6 meters or especially 10 meters and we can customize the hose length according to customers' needs.

應用：

用於高壓環境，出眾的抗腐蝕性，在工作溫度下，機械性能不隨溫度變化。可以通過高溫液體和半固態流體。主要用於汽車，拖車，貨車，等車。

性能：

強耐臭氧,耐防凍液和防鏽液

不易硬化，良好的壓縮特性

產品壽命長，減少保養問題

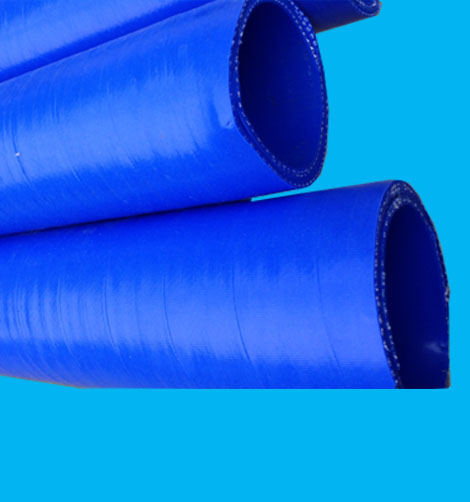

內層：甲基乙烯基矽橡膠管，含不鏽鋼螺旋線圈和2層聚酯加強筋。

內表麵：藍色，光滑。

外表麵：藍色，光滑。

耐溫：-50°C(-122F) to +180°C (356F)，在短時間可以達到 +200°C (392F)，同時具有良好的真空度0.91 bar (12.3psi)

Product applications:

Used in high pressure enviroment with excellent corrossion resistance. Under working temperature, the mechanical performance will not change with temperature.

High temperature liquid and semi solid fluid can flow through. Mainly used on auto, trailers, trucks and so on.

Product properties:

Strong ozone resistance, highly resistant to anti-freezing liquid and auti-rust liquids.

Uneasily hardening, good compressiblity, long product life and reducing maintenance problems.

inner layer:methyl vinyl silicone rubber hose,including spiral stainless steel wire and 2 layers of polyester reinforcement.

inner surface: blue and smooth.

outer surface: blue and smooth.

working temperature from -50 degrees Celsius (-122 degrees Fahrenheit) to +180 degrees Celsius (+356 degrees Fahrenheit).

In short time, the temperature can reach 200 degrees Celsius (+392 degrees Fahrenheit).

with very good vacuum rate as 0.91 bar(12.3psi)
