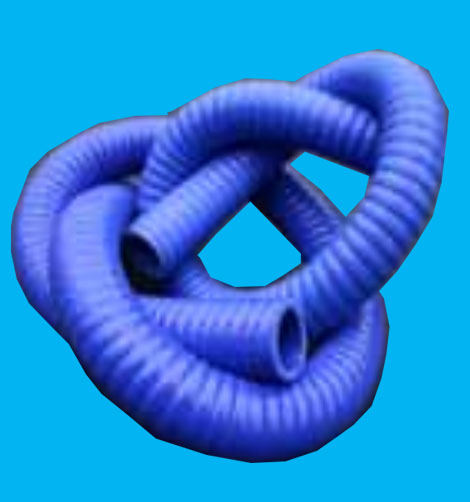

波紋軟管SP80

工業用軟管SP80

Industrial hose SP80

注:1.標準生產長度為6米（特殊可訂做10米）。可以做切短。其它的內徑要求可以根據客戶的要求來訂製。

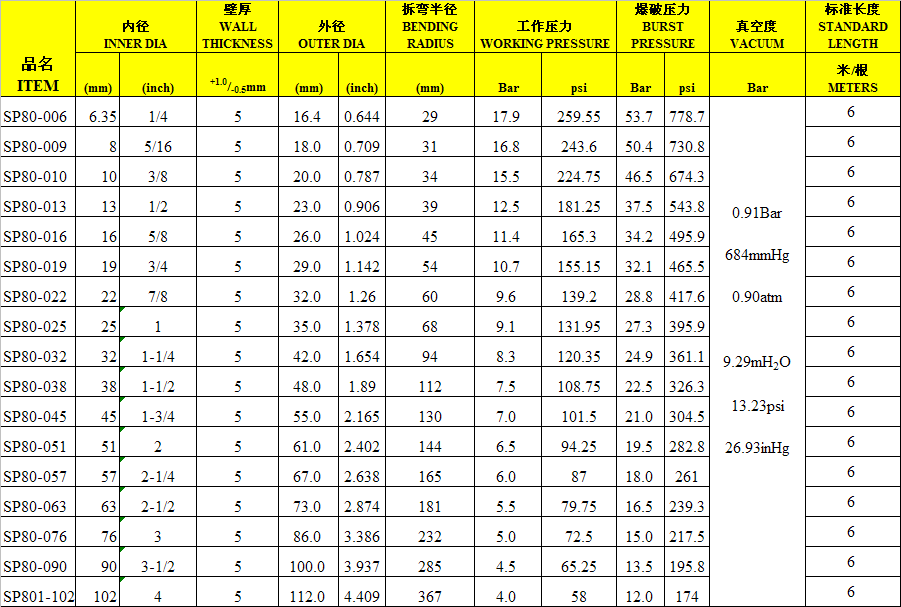

   2.在我們在參數表中測試是依照常溫，標準大氣壓狀態。當壓力不變時，溫度每上升幅度100度，壓力會下降百分之15。

REMARKS:

1, Standard length is 6 meters and we can customize the hose length according to customers' needs.

2, The test in the parameter list is in accordance with the normal temperature and the standard atmospheric pressure state. When the pressure is constant, the temperature rise by 100 degrees, the pressure will drop by 15%.

產品應用：

特別推薦用於運輸或輸送工業用油，汽車發動機部件，卡車，海洋管道等。

如汽車卡車類，發動機，發電機油，工業用油等。

產品結構：

編織：二層夾布網紋編織

鋼絲：采用單層不鏽鋼絲，間距為10MM

產品特性：

—工作溫度範圍‘-60ºC / +180ºC (-76ºF / +356ºF)在短時間內可達到  220ºC (392ºF)

—具有很好彎曲性，內壁光滑清潔，易清洗不粘水，用清洗物清洗後不附著任何殘留物。

—無嗅、無味,完全無毒，不含任何塑化劑和添加劑成分。

配套接頭：

TC接頭（直通快速接頭316L），SMS接頭，DIN快接，CLAMP，CLOCK，J螺紋接頭，等材質為304或316L任客戶挑選。

品質認證：

—矽膠管依照歐盟指令2008/95 / ECC的限製使用某些有害物質(RoHS)認可。

Product application:

Specially recommended for transportation or transportation of industrial oil,automotive engine parts, trucks, marine pipelines, etc.

Product structure:

Weaving: two layers of cloth woven mesh

Steel wire: single layer of stainless steel wire,with the spacing of 10mm.

Product characteristics:

-working temperature range -60 degree C / +180 degrees C (or -76 degrees F to +356 degree F)

in a short period of time,it can reach 220 degrees C (392 degrees F)

-With a good bend, the inner wall is smooth and clean, easy to be washed, no water sticking,After cleaned by cleaning materials, no residue remained

-odorless, tasteless, non-toxic,without any additives and plasticizer.

Supporting connectors:

TC connector (straight quick connector 316L), SMS connector, DIN quick connect, CLAMP, CLOCK, J threading connectors, etc,.The material is stainless steel 304 or 316L.

Quality certification:

-in accordance with EU directive 2008/95 / ECC restrictions on the use of certain hazardous substances (RoHS) approval.
