鉑金硫化矽膠編織軟管BPB20係列

東莞市91香蕉小视频矽膠製品有限公司

鉑金硫化矽膠編織軟管BPB20係列

 Platinum  vulcanization silicone braided hose BPB20

產品應用：

鉑金硫化矽膠軟BPB20係列廣泛用於高低溫食品乳製品和食品用油類、化妝品、化工和製藥行業和生物工程用的液體或半液體流體的產品輸送，

（如牛奶，果汁；食品機械設備用連接管；酒類用連接導管；醫藥設備連接管路等,同時可配有3A，SMS，DIN，CLAMP快速接頭）

產品描述：

矽膠軟管采用聚脂編織和鉑金矽膠組合而成。廣泛的應用於通過食品，醫藥及化妝用品，生物工程的液體和半流體。

標準長度為20米每卷，同時我們也可以根據客戶的要求生產規定的尺寸和長度，膠管產品通過美國FDA級和USP Class VI和德國BFR認證。

產品特性：

鉑金硫化矽膠軟BPB20係列：

——工作溫度範圍‘-60ºC / +180ºC (-76ºF / +356ºF)在短時間內可達到  220ºC (392ºF)

——具有很好彎曲性，內壁光滑清潔，易清洗不粘水，用清洗物清洗後不附著任何殘留物，可采用高溫高壓蒸汽消毒和滅菌。

——無嗅、無味,完全無毒，不含任何塑化劑和添加劑成分。完全符合食品FDA和生物醫用級USP VI的要求。

——這些管通常是半透明的，可以觀察到流體的動向。我們也可根據客戶所需顏色來訂製。

品質認證：

——鉑金矽膠軟管通過美國FDA 21 CFR 177.2600(食品和藥物管理局)食品級認證。

——鉑金矽膠軟管通過德國BfR零件 XV標準認證和LFBG認證。

——鉑金矽膠軟管符合通過美國醫用USP Class VI級標準認證。

——鉑金矽膠管依照歐盟指令2008/95 / ECC的限製使用某些有害物質(RoHS)認可

——鉑金矽膠軟管符合ISO10993,NSF51和歐洲藥典3.1.9的要求。

Product application:

Widely used for transportation or delivery of low temperature food, cosmetics, chemical materials or the fluid or semi liquid fluid of pharmaceutical industry and biological engineering.(such as milk, fruit juice; the connection hoses used on food machinery liquor equipment; oil production equipment and medical equipment,and can be equipped with 3A, SMS, DIN, CLAMP quick connector).

Product description:

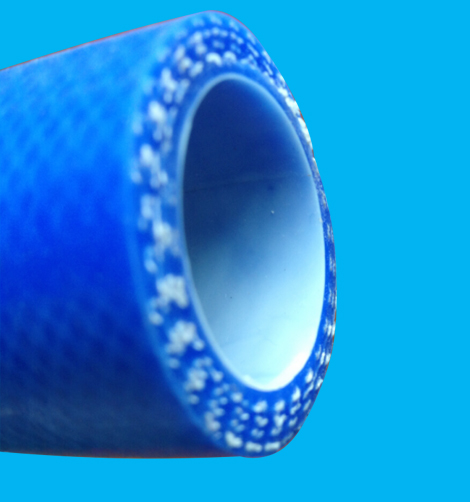

-Silicone hose is made by the polyester braiding and platinum silicone. Widely used in the industry of liquid and semi fluid food, medicine and cosmetic products, bio engineering.

-Standard length is 20 meters per roll, and we can produce the specified size and length according to customer requirements.Our hose products pass the certification of the United States FDA grade and Class VI USP and German BFR.

Product characteristics:

-The working temperature range of -60 to +180 degree Celsius (-76 to +356 degree Fahrenheit) in a short period of time can reach 220 degrees Celsius (392 degrees Fahrenheit)

-With a good bend, the inner wall is smooth and clean, easy to be washed, no water sticking,

After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.

-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully comply with the requirements of food FDA and biological medical grade VI USP.

-These tubes are usually translucent and the movement of fluid inside can be observed. The hose color can be customized according to customer's needs.

Quality certification:

-Platinum silicone hoses pass the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.

-Platinum silicone hoses pass the German BFR parts XV standard certification and LFBG certification.

-Platinum silicone hose is in accordance with the United States Class VI USP grade standard certification.

-Platinum silicone hose is in accordance with the EU directive 2008/95/ECC limitation usage of certain hazardous substances (RoHS) recognition.

-Platinum silicone hose is in accordance with ISO10993, NSF51 and European Pharmacopoeia 3.1.9 requirements.
